RESOLUME → PANGOLIN BEYOND
LaserBridge is a Resolume effect that turns a clip’s own pixels into BEYOND laser frames — live, every frame. No separate laser timeline. Nothing to re-cue. Zero drift, by construction.
Live — Trace Reveal mid-signature, one beam, real stage
FFGL 2.1|Arena & Avenue 7+|Pangolin BEYOND|8 modes|zero network at showtime
The idea
Every other workflow keeps a laser timeline next to the video and hopes they stay in step. LaserBridge reads the frame the clip actually rendered and traces the laser from it — so the two can never disagree.

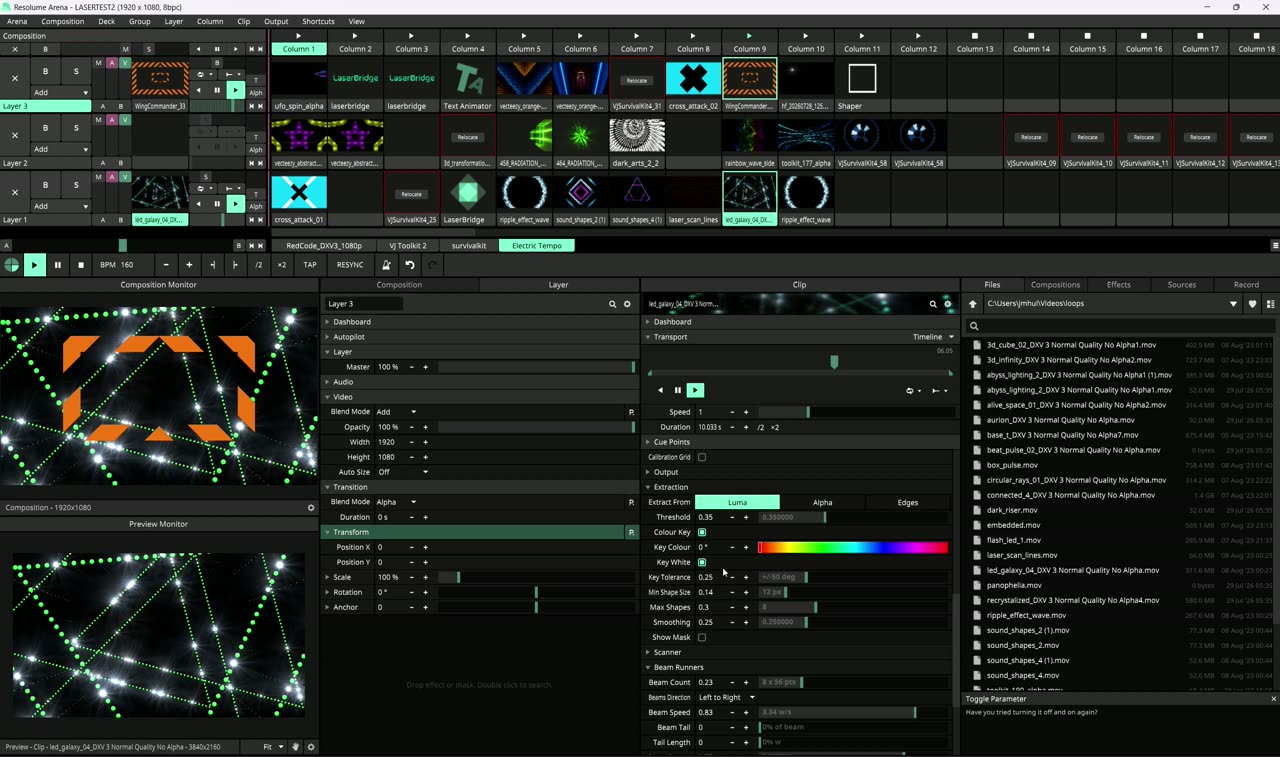

A real session — LaserBridge riding clips across the deck
Eight modes
Each mode is a different relationship between the picture and the beam — from faithful outline tracing to effects where the laser drives the video.
The laser continuously redraws your artwork’s outlines as it moves. Logos, text, shapes — live.
the workhorseTrue hot beams race along the outlines with comet tails. Constant brightness at any beam count.
the haze modeA beam erases the clip off the wall — or draws it into existence. Laser and video locked to one edge.
the signatureOutlines drawn only inside scrolling bands. A rhythmic, scanner-style read of the same artwork.
cheap on pointsA wandering laser circle; the video exists only inside it, cooling to black where it just left.
searchlightPulsed bolts blast the covering off a clip, hit by hit, energy ripples included — then the rest floods away.
the openerThe beam outlines each shape in turn — and the instant a trace closes, that shape stands revealed.
the slow burnCalibration pattern on video and laser at once. Warp the zone in BEYOND until they sit on top of each other.
align once
Trace Clip — handwriting, redrawn live
Sweep — the plane mid-frame
Beam Runners — riding live content
One frame, no compositing — the fan mid-reveal
How it works
Add LaserBridge like any video effect (after Auto Mask if you key). Tick a mode, tick Arm Laser, pick a BEYOND zone.
Grid mode puts the same calibration pattern on the video and the laser. Warp the zone in BEYOND until they match — every clip lands aligned forever after.
The laser follows Resolume’s triggering — fire, X, clear, layers, columns. Map Fire Sweep to MIDI and burn graphics off the wall on cue.
Built for shows
LaserBridge only sends frames to a projection zone. It never touches BEYOND’s arming, blackout, or safety settings — your exclusion zones and kill switches work exactly as before.
A beam parked on one spot gets faded out automatically within seconds — protection for LED walls and long dwells — and recovers the instant content moves again.
License expired? BEYOND closed? Webserver off? The video keeps playing untouched, every time. Failure only ever means “no laser” — never a dark screen.
Licensing verifies a signed file on disk — the plugin itself never touches the network. A sealed show machine keeps working for weeks between check-ins.
Pricing
one-time purchase
one-time, per installation
COMING LATER — effect packs: new modes as small add-ons to your existing license. No reinstall, no new key.
Trial
No hardware yet? Design entire shows against the BEYOND visualizer — this is the demo doing exactly that
You can’t judge a laser tool with the laser off. The trial is the full plugin driving your actual rig for a limited time — build with it, play a show with it, then buy when it’s earned its place.
WINDOWS 64-BIT · RESOLUME ARENA / AVENUE 7+ · PANGOLIN BEYOND · ONE INSTALLER
